Drilling fluid manifold:

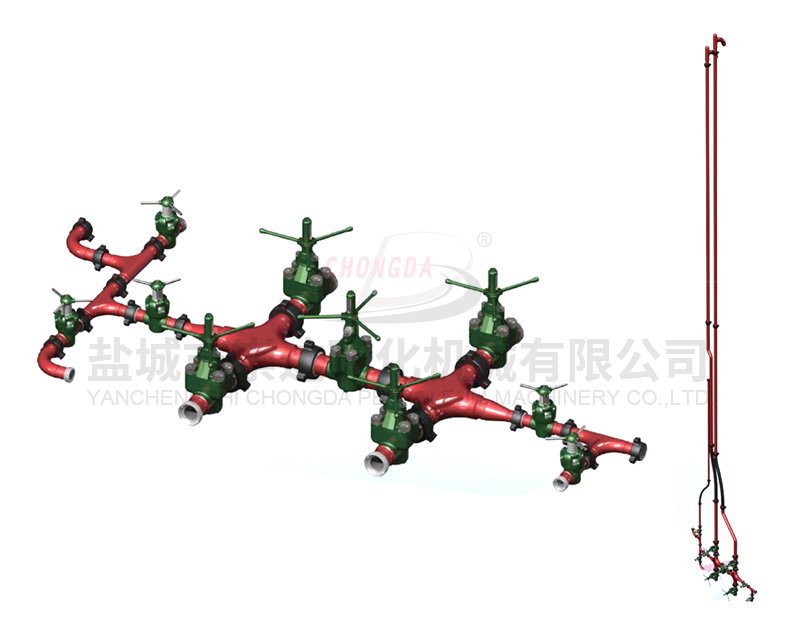

The drilling fluid manifold consists of a mud gate valve, a high-pressure union, a tee, and installation: a high-pressure hose, elbow, pressure gauge, short section, etc. The ground valve group adopts a goose shaped triangular structure, with a structural sealing surface and sealing ring groove, coated with lubricating grease, compact, low fluid assistance, and the ability to fully exert power. The drilling floor valve group adopts a reducing four-way valve, which can achieve direct use of a single pipe and is convenient for on-site use. The high-pressure union is made of high-strength alloy steel and undergoes heat treatment. Structurally, it can achieve fast loading and unloading operations. Made from specialized machinery. Sealing is achieved through the combination of precision machined spherical and conical surfaces with sealing rings.

The gate and seat of the mud gate valve are both made of hard alloy spray welded, which has the characteristics of erosion resistance and corrosion resistance, greatly improving the service life of the valve, and the operating torque is small, and the switch is lightweight.

The elbows, reducers, tees, and tees of the manifold are made of high-strength alloy steel, with appropriately thickened pipe walls and heat treated to fully meet the requirements of strength and corrosion resistance.

Specialized processes are used to process parts with high precision requirements to ensure manufacturing quality; Before assembly, high-pressure parts undergo hydrostatic strength and sealing tests to strictly ensure factory quality.

1、 Installation:

1. When installing, the sealing surfaces and grooves of each joint should be cleaned first, lubricating grease should be applied, and dirt inside the pipeline should be removed.

2. Carefully check if all connections are tightened.

3. During relocation, each component can be disassembled, the pipelines cleaned, and the joint parts coated with lubricating grease and wrapped to prevent dirt from entering and damaging the threads and sealing surfaces.

2、 Usage requirements and maintenance protection

1. Regularly add lubricating grease to the mud gate valve and maintain the gate valve.

2. Regularly check whether the connections and fixing bolts of each part are loose.

3. When leakage is found in the sealing area, the sealing components should be replaced in a timely manner to prevent damage to the relevant metal parts.

4. Keep the surface of the manifold clean and regularly paint it for corrosion prevention.
